50 tons Telescopic Truck Crane Mobile truck Crane QY55V Factory Price
Continuously overall promotion makes our lifting capacity of crane be improved once and once again.
· 43 m main boom, two section jibs (9.5m ,16m).
· Optimized central slewing position increases the lifting capacity of the crane over rear.
· Large outrigger span improves the working stability of the crane greatly,
· Adopt internationally advanced structure analysis and calculation methods to develop the lifting capacity of crane deeply.
· Leading boom manufacturing process in trade.
The specification for 50 tons Telescopic Truck Crane Mobile truck Crane QY55V Factory Price
| Item | Value | Remarks |
| Working performance specification | Max. rated total lifting capacity kg | 50000 | |
| Max. load moment of basic boom kN.m | 1764 | 1470 (Outrigger beam half extended) |
| Max. load moment with max. main boom length kN.m | 940.8 | 793.8(Outrigger beam half extended) |
| Max. lifting height of basic boom m | 11.6 | |
| Max. lifting height of main boomm | 42.1 | Deformation of boom is not taken into consideration |
| Max. lifting height of fly jibm | 58.3 |
| Working speed | Max. speed of single rope on main winch m/min | 130 | The 4th layer of drum |
| Max. speed of single rope onauxiliary winch m/min | 72 | The 2nd layer of drum |
| Derricking time of boom s | 50 | |
| Telescopic time of boom s | 95 | |
| Slewing speed r/min | 0~2 | |
| Traveling specification | Max. traveling speed km/h | 76 | |
| Max. gradeability % | 32 | |
| Min. turning circle diameter m | 24 | |
| Min. ground clearance mm | 260 | |
| Limits for exhaust pollutants and smoke | Comply with related standards | GB3847-2005 |
| GB17691-2005 |
| (Stage III) |
| Oil consumption per hundred kilometers L | 40 | |
| Mass specification | Deadweight of crane in traveling condition kg | 40400 | |
| Complete vehicle kerb mass kg | 40200 | |
| Front axle load kg | 14900 | |
| Rear axle load kg | 25500 | |
| Dimension specification | Overall dimensions(L×W×H)mm | 13300×2750×3550 | |
| Base on outriggers m | 5.92 | |
| Distance between outriggers m | full extended 6.90 | |
| half extended 4.70 |
| Main boom length m | 11.1~42.0 | |
| Main boom angle° | -2~80 | |
| Fly jib length m | 9.5, 16 | |
| Offset angle of fly jib ° | 0 , 30 | |
| Chassis | Model | ZLJ5401 | |
| Class | II | |
| Engine | Model | WP10.336 | |
| Rated power kW/r/min | 247/2200 | |
| Max. output torque N.m/r/min | 1250/1200~1600 | |
| Manufacturer | Changsha Zoomlion Heavy Industry Science & Technology Development Co., Ltd. |

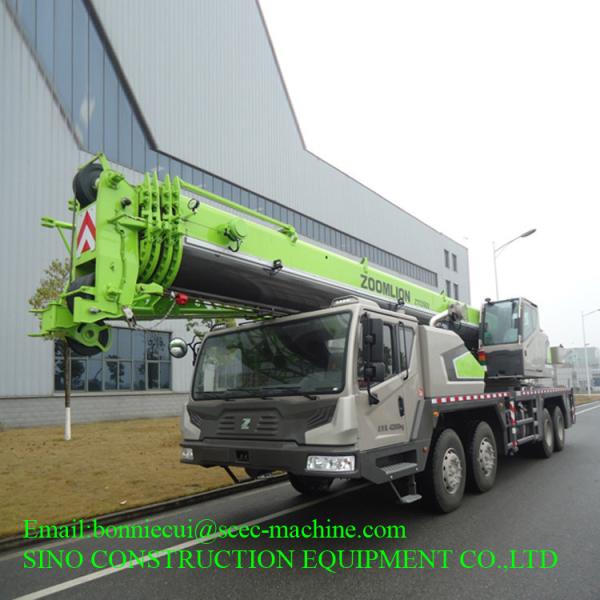

The photo of 50 tons Telescopic Truck Crane Mobile truck Crane QY55V Factory Price
From the factory to our customer's destination, we will conduct
all-round supervision. We can also help
to sign purchase order contracts, test product quality, guarantee timelydelivery, and accomodate special orders.
